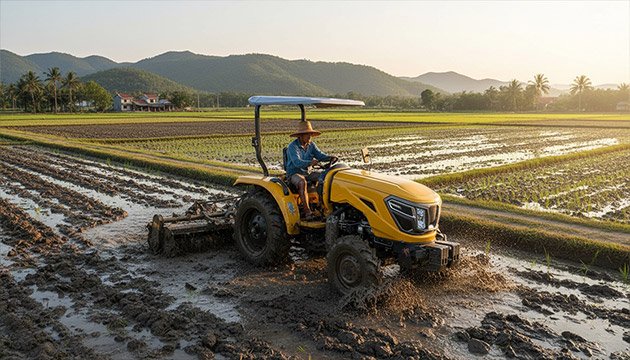

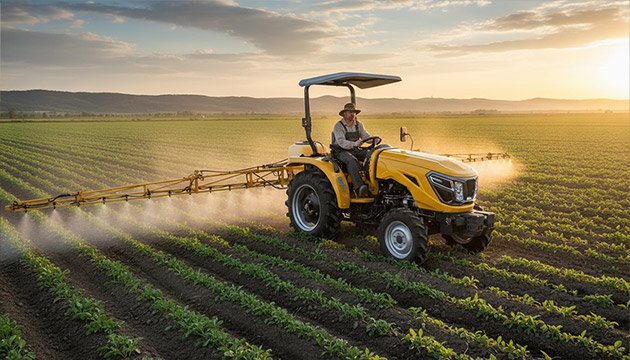

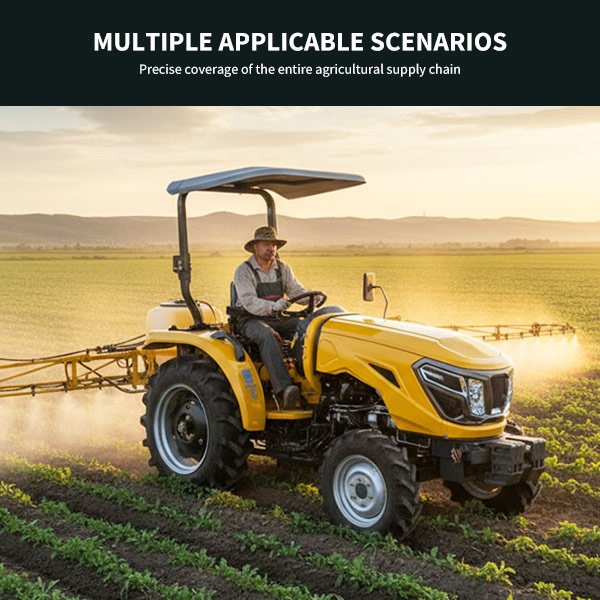

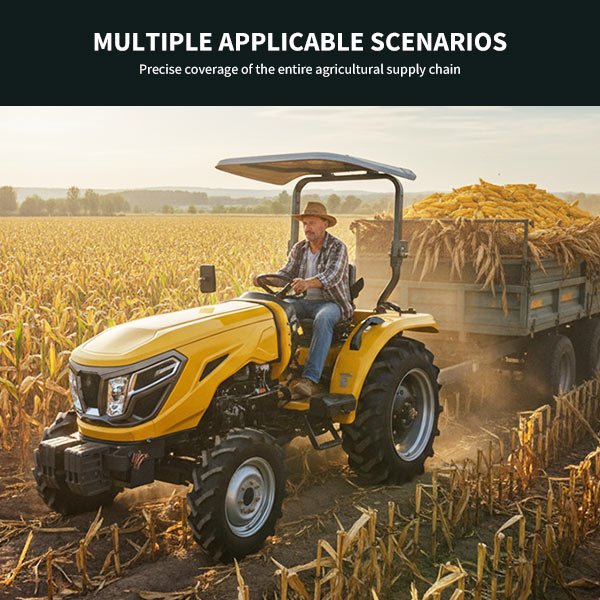

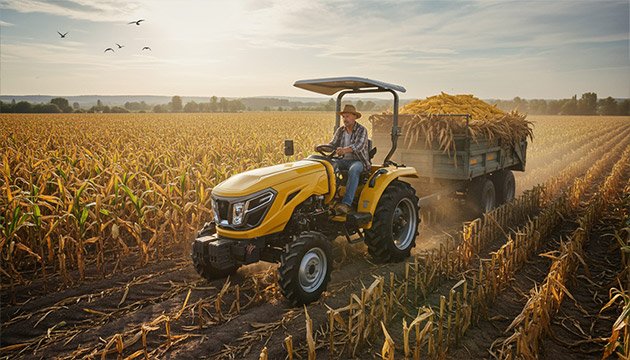

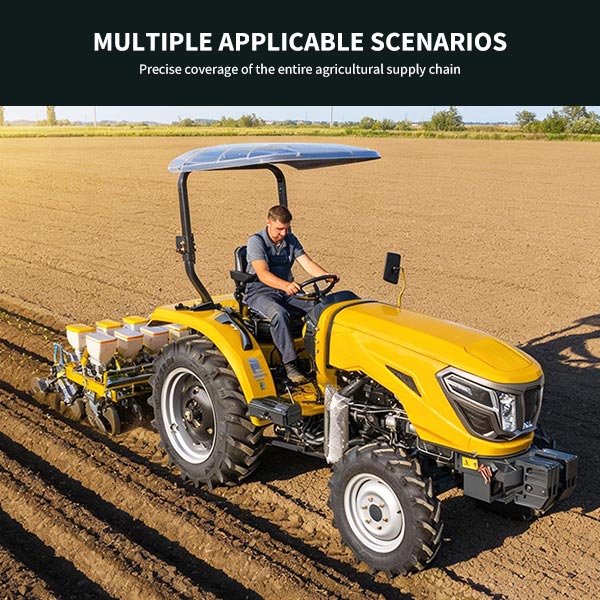

Application Scenarios
Product Description
The 50 HP 4WD SeekMach Compact Tractor is a durable and high-efficiency agricultural machine for heavy farming and professional tasks.
With a structural weight of 1,410 kg, it provides excellent stability and traction.
It offers an enhanced maximum rated drawbar power of ≥8.5KN for tough plowing and hauling work.
Powered by the reliable LAIDONG 495BT engine, it delivers 50 HP and stable performance while meeting Stage II emission standards.
The 8+2 gear transmission and single-stage clutch offer a wide speed range from 2.06 to 31.30 km/h.
The dual-speed PTO (540/720 rpm) and one set of hydraulic outputs support compatibility with various professional attachments.
The compact structure has an overall width of 1,400 mm and a wheelbase of 1,800 mm.
It allows efficient operation in narrow spaces like orchards and greenhouses.
Equipped with hydraulic steering and integrated front and rear ballast, it ensures precise control and better balance for professional agricultural work.
Key Advantages
Compact Design for Restricted Environments
-
Narrow 1400 mm overall width is perfectly suited for navigating orchards, greenhouses, and narrow farm lanes.
-
1800 mm wheelbase provides a stable platform while maintaining a maneuverable footprint.
-
Ideal for restricted agricultural sites where high-power machinery must operate in limited spaces.
High-Efficiency Working Performance
-
Maximum rated drawing power of ≥8.5KN ensures heavy-duty towing and plowing capability.
-
Dual-speed PTO (540/720 rpm) improves the productivity of diverse rotating implements.
-
8 Forward + 2 Reverse gears offer a versatile speed range (2.06–31.30 km/h) to match specific task requirements.
Reliable & Professional Power
-
Equipped with a LAIDONG 495BT engine, recognized for its durability and steady torque.
-
50 HP output delivers professional-grade performance for demanding agricultural applications.
-
Stage II emission standards ensure stable operation and reliable mechanical efficiency.
Stable & Durable Chassis
-
4WD driven model provides superior grip and climbing ability on uneven or soft terrain.
-
6.5-16 front and 11.2-24 rear tires offer excellent ground clearance and stability.
-
Optimized weight distribution with front and rear ballast (one layer) ensures balance under heavy loads.
Easy Operation & Maintenance
-
Full hydraulic steering allows for effortless maneuverability and precise operator control.
-
1410 kg structural weight balances heavy-duty durability with ease of transport.
-
Single-stage clutch and 1 group of hydraulic output provide simple operation and low maintenance costs.
Parameter
| Category | Item | Specification |
| Power System | Driven Model | 4WD |
| Engine | LAIDONG 495BT | |
| Engine Power | 50 HP | |
| Emission Standards | II stages | |
| Transmission | Clutch | Single-stage type |
| Gears | 8 + 2 | |
| Speed Range | Forward: 2.06–31.30 km/h | |
| Reverse: 2.71–12.52 km/h | ||
| Performance | PTO Speed | 540 / 720 rpm |
| Max. Rated Drawing Power | ≥8.5KN | |
| Steering | Hydraulic steering | |
| Dimensions | Weight | 1410 kg |
| Wheel Base | 1800 mm | |
| Overall Dimension (LWH) | 3450 * 1400 * 2000 mm | |
| Tires Size | 6.5-16 / 11.2-24 | |
| Attachments | Ballast | Front and Rear ballast (one layer) |
| Hydraulic Output | 1 groups |
