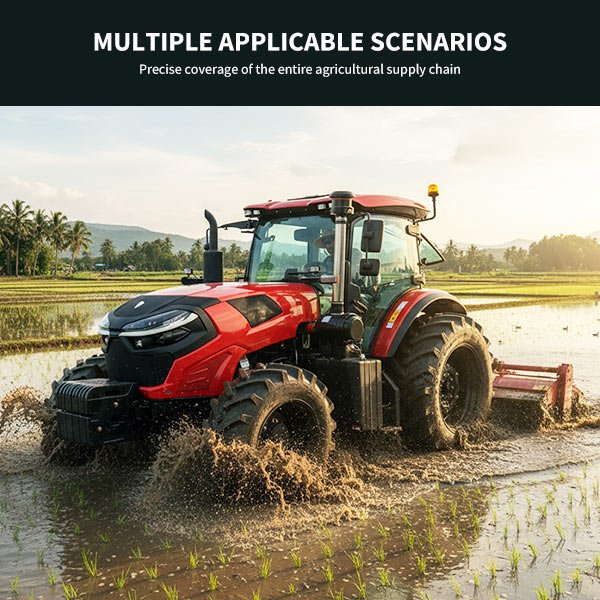

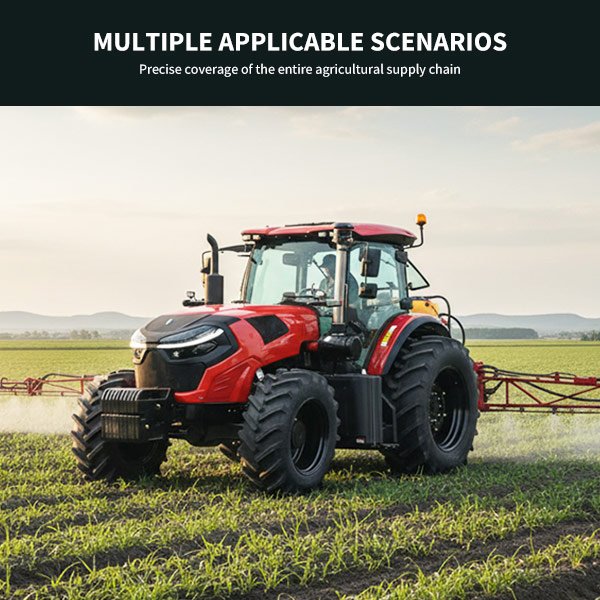

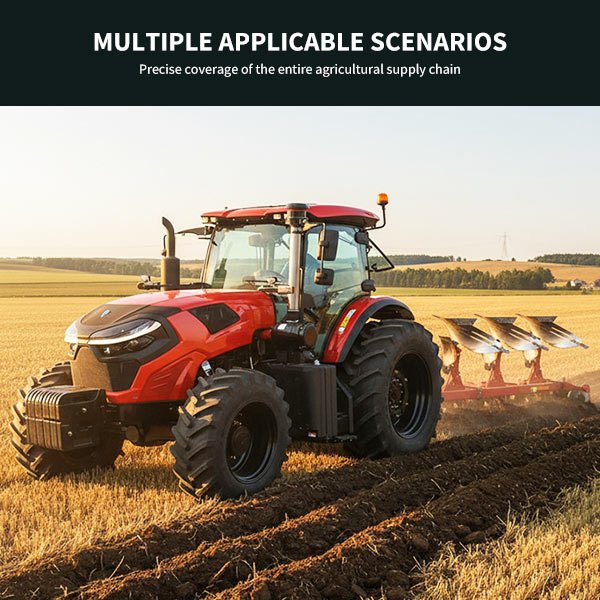

Application Scenarios
Product Description
SeekMach 220HP Farming Tractor
The 220HP tractor features a thickened shell for improved load-bearing capacity to handle heavy-duty operations.
All gears use a helical tooth structure to prevent breakage, ensure smooth engagement, and boost transmission efficiency.
The tractor is fitted with high-sealing hydraulic pipes for excellent pressure resistance and stable hydraulic performance.
The hydraulic disc brake system provides strong braking force, great anti-thermal fade performance, and reliable operation.
It is powered by a famous domestic engine, with Dongfanghong standard and Yuchai optional, ensuring stable quality.
With over 20% power reserve and ample torque, it delivers strong and consistent power output.
The LED digital dashboard clearly shows vehicle conditions for a comfortable driving experience.
The Class 3 hydraulic three-point linkage includes a quick hitch and three standard hydraulic outputs.
It is compatible with a wide range of hydraulic agricultural implements.
Flexible transmission ratios meet various working requirements for different customers.
It is a reliable partner for efficient and modern agricultural production.
Key Features
Flat Floor With Sunshade
-
Large seating space and wide view, ensure comfort and safety at work.
-
Large canopy blocks harsh sunlight and optional cab further enhances comfort.
Seat
- World famous brand, Import Grammer Seat, Ultra-high shock absorption and softness, greatly relieve driving fatigue.
Engine
-
Match Yuchai or Weichai 6 cylinder engine, with turbocharger, more power and lower fuel consumption.
-
Add hydraulic condenser plate, effectively cools the hydraulic system and prolongs its service life.
-
Weed brushes are modified on the water radiator to prevent weeds from being drawn into the engine.
Diesel Tank
-
Large capacity 640L diesel tank, meet the needs of long-term work.
-
With protective plate to prevent collision.
Front Axle
-
Reinforced four-wheel drive front axle, optional Carraro brand
-
Adopt secondary reduction mechanism, large transmission ratio and large torque reserve
-
Hydraulic hose connection, more flexible drive, high steering response.
Rear Working System
-
Hydraulic up&down 3-point hitch, the lift is more powerful.
-
3 groups hydraulic output, suitable for a variety of agricultural machinery
-
8 spline PTO shaft, speed optional 540/1000, 760/1000 or 760/850
Tire
-
Front and rear tire match radial tire, reasonable speed ratio.
-
Provides more friction and traction, reducing tire slip
-
Less pattern wear and extend service life.
Our advantage
-
Excellent R&D and sales team, professional technicians provide one-to-one service to solve all your worries.
-
Carefully selected products with reliable quality control.
-
Located in China’s largest agricultural machinery industry cluster, Shandong Province, with obvious regional advantages and rich industrial resources.
-
With strong research team, we can help you find various types of products and save purchasing time.
After-sales service
-
We have professional technicians to provide technical support
-
Free maintenance for faults during the warranty period
-
24 hours online service to help you solve all problems
-
Free accessories for customers with every shipment
Parameter
| Category | Item | Unit | Specification Value |
| Basic Parameters | Dimension (L×W×H) | mm | 5800×2800×3350 |
| Basic Parameters | Min. Operating Weight | kg | 7700 |
| Basic Parameters | Wheelbase | mm | 3000 |
| Basic Parameters | Wheeltrack (Front/Rear) | mm | 1720, 1820, 1940, 2040, 2140 / 1700～2400 |
| Engine | Model | / | YUCHAI 220HP 6-Cylinder National III Emission Standard |
| Engine | Type | / | Vertical, Water-cooling, Four Stroke, Common Rail |
| Engine | Quantity of Cylinders | cylinder | 6 |
| Engine | Rated Power | HP/KW | 220HP / 161.8KW |
| Engine | Rated Speed | r/min | 2200 |
| Drive Train | Clutch Type | / | Single Disc, Dry, Independent Control, Dual Stage |
| Drive Train | Gearbox Type | / | TG32F+32R |
| Drive Train | Gearshift Type | / | Synchronizer |
| Steering System | Steering Type | / | Full Hydraulic Steering |
| Brake System | Brake Type | / | Hydraulic Brake, Wet, Disc |
| Walking Device | Tire Size (Front/Rear) | / | 16.9-28 / 20.8-38 |
| Working Device | Suspension Device Type | / | Rear, Three-point Suspension, Category III |
| Working Device | Suspension Device Category | / | Category III |
| Working Device | Tillage Depth Adjustment | / | Height Adjustment, Float Control |
| Working Device | Hydraulic Output Domain | group | 4 |
| Working Device | Standard PTO Speed | r/min | 8-spline or 6-spline, 760/850 or 540/1000 |
| Others | Rollover Protection Structure/Cab | / | Cab |
