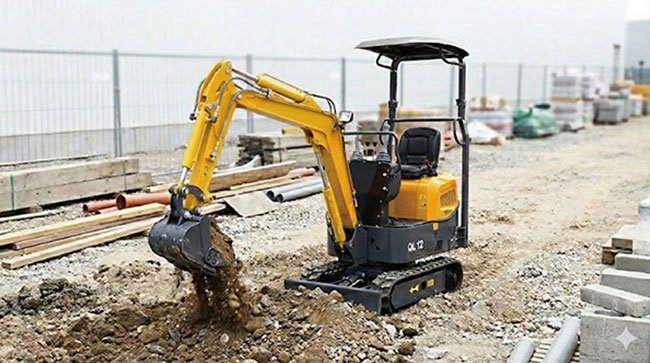

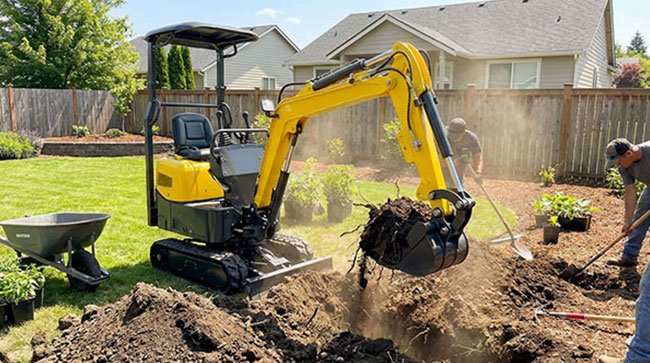

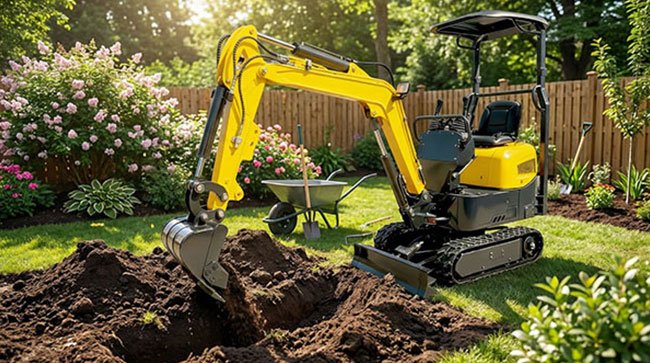

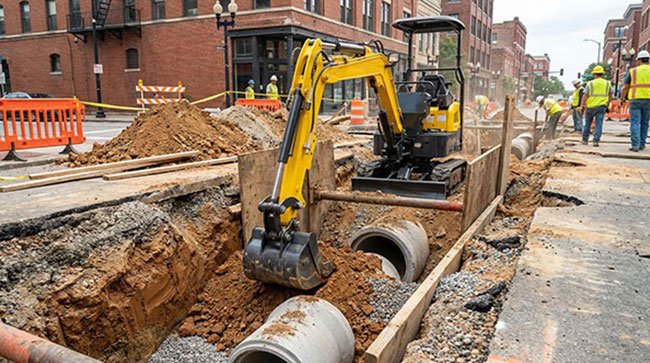

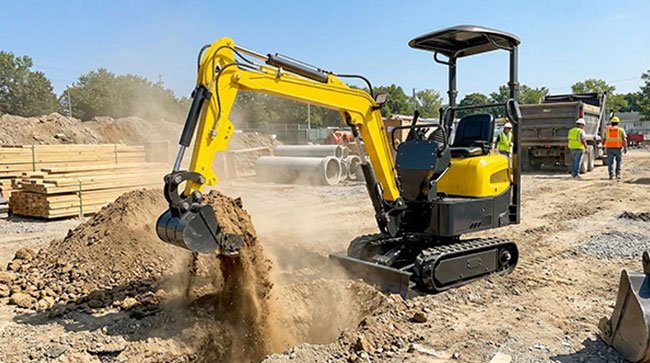

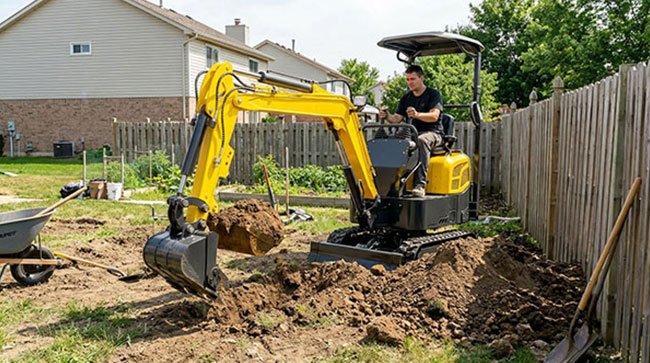

Application Scenarios
Product Description
The SeekMach-12 Mini Excavator is a sturdy and adaptable construction machine built for efficient operation in tough working conditions. With an operating weight of 1200 KG, it delivers excellent stability and enhanced power for landscaping, utility projects, and various small to medium construction tasks.
This model provides multiple engine choices, such as a dependable 7.6 KW Koop engine or a high-performance 13.5 HP Briggs & Stratton EPA engine, guaranteeing steady power output and cost-effective operation. Its upgraded hydraulic system, with a rated working pressure of 16 Mpa and a flow rate of 25.2 L/min, ensures accurate control and stable performance for professional digging work.
Created to maneuver easily in confined spaces, the SeekMach-12 comes with a telescopic undercarriage that extends from 800 to 950 mm and a short rear swing radius of 800 mm. Boasting a maximum digging depth of 1626 mm and a maximum digging reach of 3077 mm, this compact excavator enables efficient work in limited areas like narrow lanes, gardens, and indoor construction sites.
Key Advantages
Compact Design for Tight Spaces
-
Adjustable chassis width (800-950 mm) and short tail rotary radius (800 mm)
-
Ideal for urban construction, narrow alleys, and restricted environments
Efficient Digging Performance
-
Maximum digging depth of 1626 mm
-
Maximum digging distance up to 3077 mm
-
Maximum dumping height of 1687 mm improves loading efficiency
Reliable & Versatile Power
-
Multiple engine options including Koop (7.6 KW) and Briggs & Stratton EPA (13.5 HP)
-
7.6 KW rated power ensures stable performance and fuel efficiency
Stable & Durable Undercarriage
-
180 mm track width and 900 mm ground contact length
-
Enhanced stability on uneven terrain with 20 Kpa ground pressure
Powerful Operation & Control
-
Robust 1200 KG working weight for increased digging force
-
High-flow hydraulic system with 25.2 L/min for smooth and precise operation

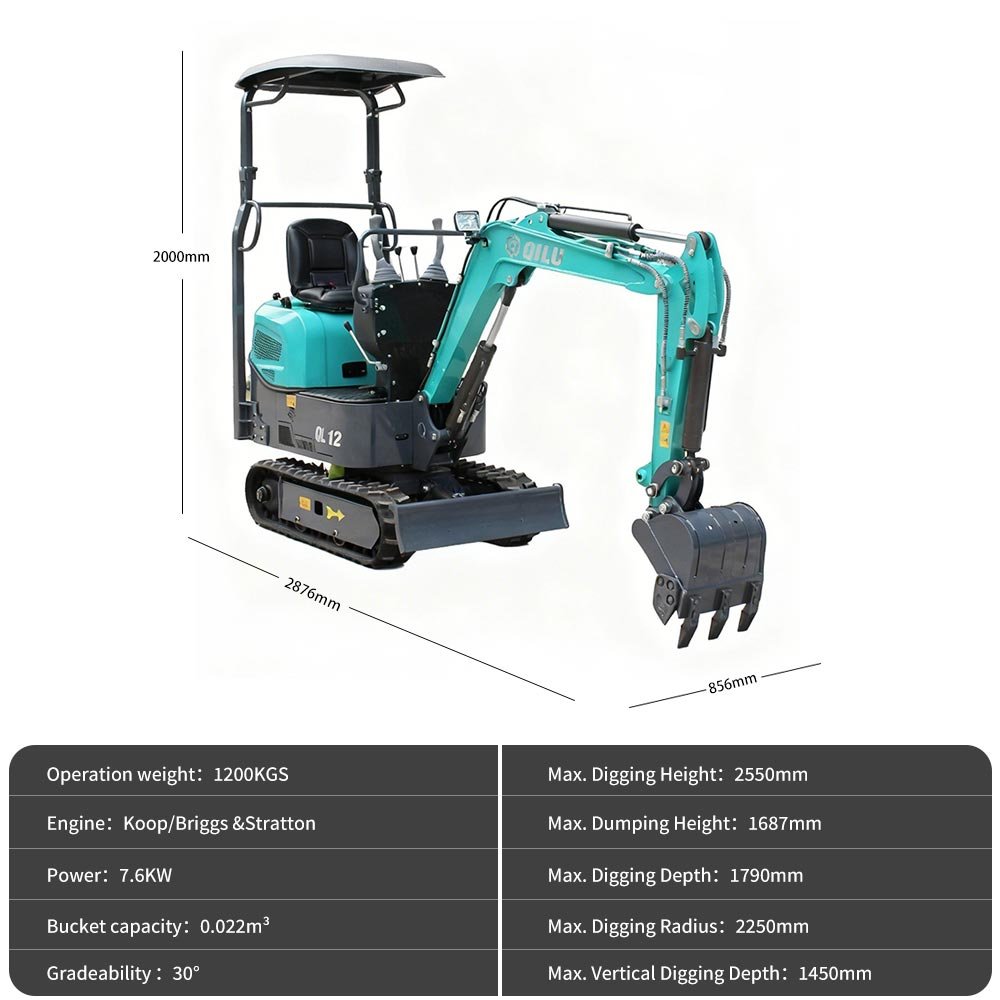

Parameter
| Category | Parameter | Specification |
| Performance | Rated power | 7.6 KW |
| Bucket capacity | 0.03 m³ | |
| Engine model | Koop192(7.6KW) / Changchai192(8.6KW) / Briggs& Stratton EPA(13.5HP) / Kubota D722(10.2KW) | |
| Working weight | 1200 KG | |
| Max digging force | 7.5 KN | |
| Fuel tank size | 5.5 L | |
| Hydraulic oil tank size | 18 L | |
| Pump mode | Single gear pump | |
| Rated working pressure | 16 Mpa | |
| Flow rate | 25.2 L/min | |
| Rotary speed | 13 Rpm | |
| Walking speed | 2.2 Km/h | |
| Grade ability | 30 ° | |
| Ground pressure | 20 Kpa | |
| Working Scope | Max digging distance | 3077 mm |
| Max digging depth | 1626 mm | |
| Max digging height | 2550 mm | |
| Max dumping height | 1687 mm | |
| Tail rotary radius | 800 mm | |
| Dozer max ground clearance | 120 mm | |
| Dozer max support depth | 200 mm | |
| Dimensions | Overall width | 850 mm |
| Extension range | 800-950 mm | |
| Overall height | 2200 mm | |
| Overall length | 2876 mm | |
| Min ground clearance | 132 mm | |
| Ground contact length of track | 900 mm | |
| Tracks width | 180 mm |
