Application Scenarios
Product Description
The SeekMach 08 ECO Mini Excavator is a compact and efficient construction machine built for light-duty digging work in confined spaces.
With an operating weight of 800 kg, it provides outstanding maneuverability while keeping enough digging power for landscaping, municipal projects, and small construction jobs.
Powered by a dependable Koop engine generating 7.6 kW, the SeekMach 08 ECO guarantees stable performance, low fuel consumption, and long service life.
Its backhoe operation mode and optimized hydraulic system deliver precise control and smooth movement, making it suitable for professional contractors and equipment rental markets.
The compact chassis width of 780 mm and short tail turning radius of 850 mm enable the machine to work efficiently in narrow sites like gardens, sidewalks, and indoor demolition areas.
Key Advantages
Compact Design for Tight Spaces
-
Narrow chassis width (780 mm) and short tail swing (850 mm)
-
Ideal for urban construction and restricted environments
Efficient Digging Performance
-
Maximum digging depth of 1300 mm
-
Digging radius up to 2450 mm
-
Dump height of 1600 mm improves loading efficiency
Reliable & Economical Power
-
Equipped with a Koop engine known for durability
-
7.6 kW output balances power and fuel efficiency
Stable & Durable Undercarriage
-
150 mm track width and 1070 mm ground contact length
-
Enhanced stability on uneven terrain
Easy Transport & Operation
-
Lightweight 800 kg design
-
Simple operation and low maintenance cost

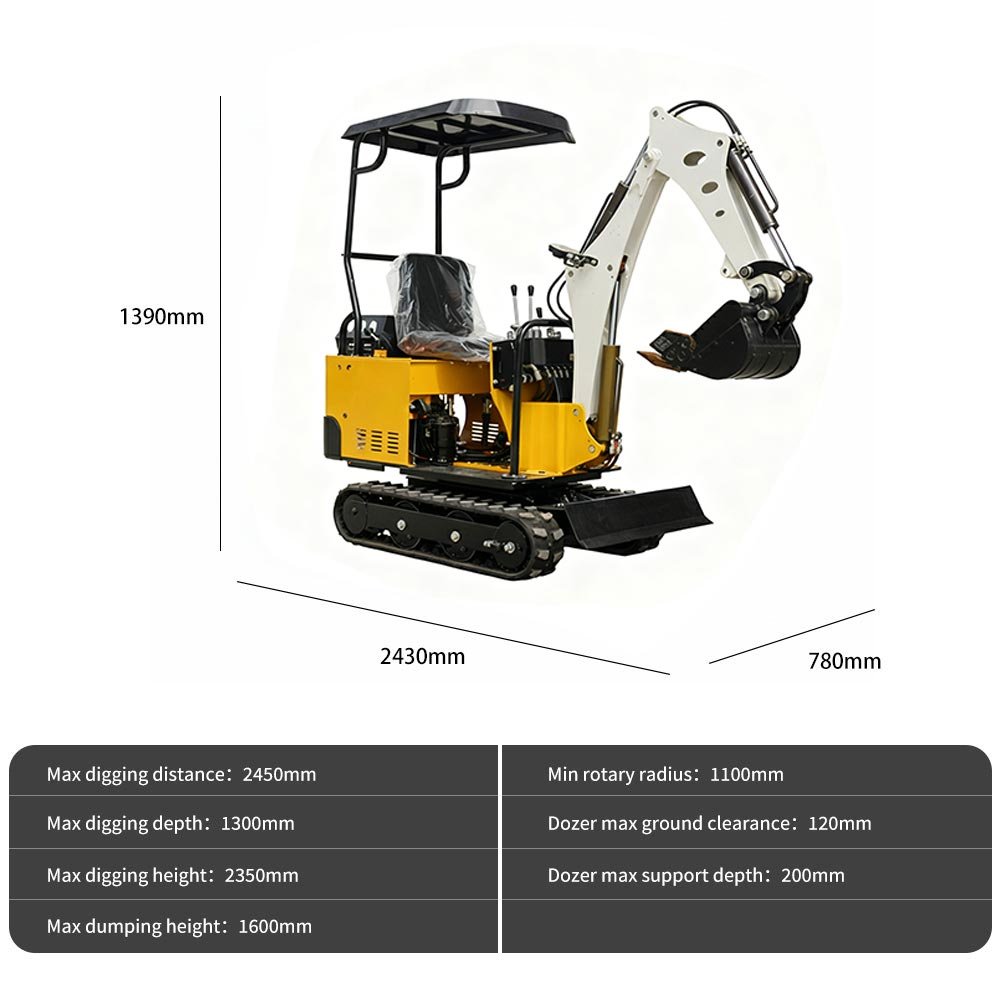

Parameter
| General | Model | QL-08 ECO |
| Engine & Performance | Engine Brand | Koop |
| Engine & Performance | Rated Power | 7.6 kW |
| Engine & Performance | Work Device Mode | Backhoe |
| Weight & Capacity | Operating Weight | 800 kg |
| Weight & Capacity | Bucket Capacity | 0.02 m³ |
| Working Range | Maximum Digging Radius | 2450 mm |
| Working Range | Maximum Digging Depth | 1300 mm |
| Working Range | Maximum Digging Height | 2350 mm |
| Working Range | Maximum Dump Height | 1600 mm |
| Working Range | Minimum Gyration Radius | 1300 mm |
| Working Range | Tail Turning Radius | 850 mm |
| Dimensions & Undercarriage | Track Width | 150 mm |
| Dimensions & Undercarriage | Track Ground Length | 1070 mm |
| Dimensions & Undercarriage | Minimum Ground Clearance | 80 mm |
| Dimensions & Undercarriage | Chassis Width | 780 mm |
| Dimensions & Undercarriage | Overall Length | 2430 mm |
| Dimensions & Undercarriage | Machine Height | 1390 mm |
