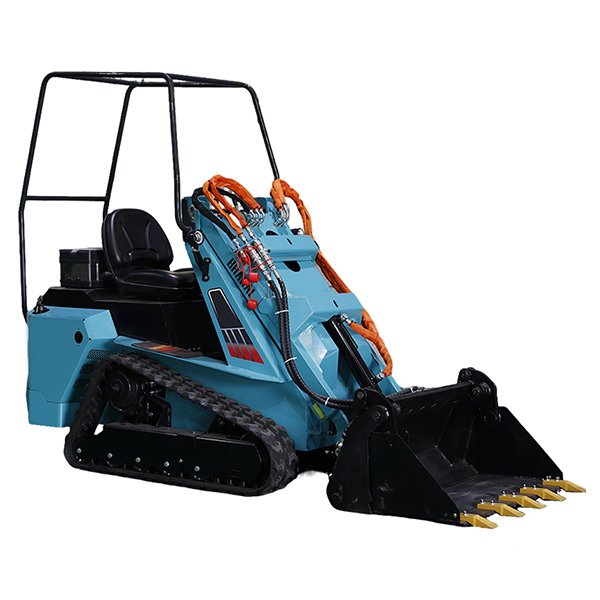

Mini Skid Steer Loader SM-480T

Maximum load capacity：479kg

Max. operating height：2703mm

Max. height at flat bucket：2013mm

Max. height discharge angle：45°

Application:

Features:

High-efficiency and energy-saving engine, compliant with international emission standards
Advanced hydraulic system, improving working efficiency by 30%
Ergonomic cab design, lowering operator fatigue
Intelligent monitoring system for real-time equipment status tracking
Sturdy structural parts for longer service life
Various working modes to suit different operation conditions

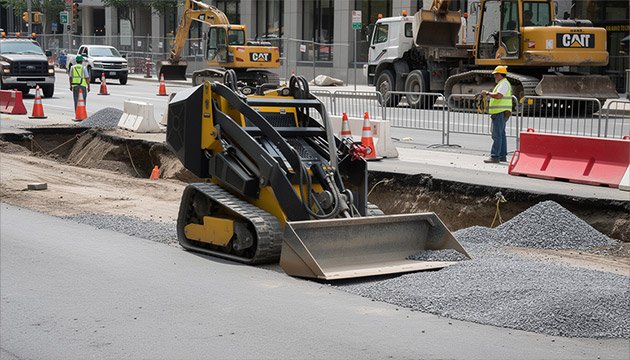

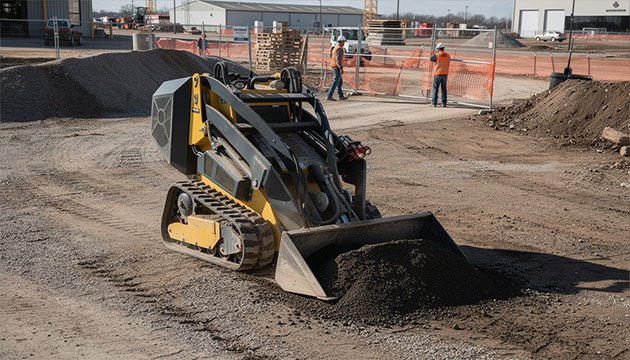

Application Scenarios

Product Description

The SeekMach 480T Skid Steer Loader is a versatile and high-performance construction machine built for heavy material handling in confined spaces.

With an operating weight of 1000 kg, it provides excellent stability and maneuverability while maintaining a strong rated load capacity of 390 kg (max 479 kg).

It is well suited for landscaping, agricultural projects, and site preparation work.

Powered by a reliable 23 HP Runtong twin-cylinder engine, this loader delivers strong performance and smooth operation with its naturally aspirated design.

The optimized 17 MPa hydraulic system and 16L fuel tank offer stable power and high efficiency, making it a reliable option for professional contractors and industrial rental markets.

The compact chassis width of 1070 mm and short rear tail length of 245 mm allow the machine to work efficiently in narrow job sites like urban alleys, gardens, and indoor demolition areas.

With a maximum working height of 2703 mm and a dump height of 1750 mm, it achieves excellent loading efficiency while staying compact for easy transportation.

Key Advantages

Compact Performance for Restricted Areas

Narrow chassis width of 1070 mm and a low overall height of 1300 mm.
Ideal for maneuvering in tight urban environments and restricted job sites.

Enhanced Lifting & Loading Capacity

High rated load capacity of 390 kg with a 479 kg maximum limit.
Substantial 1750 mm dump height allows for efficient loading into trailers and waste containers.
Large $0.14 m^3$ bucket capacity maximizes productivity per cycle.

Reliable & Powerful Drivetrain

Equipped with a 23 HP Runtong twin-cylinder engine for high-torque performance.
Smooth travel speed ranging from 0 to 8 km/h for fast site navigation.

Operational Stability

Solid 1000 kg operating mass provides a balanced platform for heavy lifting.
120 mm ground clearance allows for stable operation on uneven ground.

Parameter

Category	Parameter	Unit	Value
Performance	Operating weight	kg	1000
	Rated load capacity	kg	390
	Maximum load capacity	kg	479
	Travel speed	km/h	0–8
Engine & System	Engine Brand	–	Runtong
	Rated Power	HP	23
	Number of cylinders	–	2
	Intake method	–	Naturally Aspirated
	System pressure	MPa	17
	Fuel tank capacity	L	16
Dimensions	Overall width	mm	1070
	Overall height	mm	1300
	Total length (with standard bucket)	mm	2343
	Total length (without bucket)	mm	1812
	Ground clearance	mm	120
	Tail length	mm	245
Working Range	Max. operating height	mm	2703
	Height to bucket pin	mm	2180
	Dump height	mm	1750
	Dump distance	mm	280
	Max. height at flat bucket	mm	2013
	Max. height discharge angle	°	45
	Bucket capacity	$m^3$	0.14
