Product Description
The SeekMach-10 ECO Mini Excavator is a sturdy and versatile construction machine built for high-efficiency work in confined spaces.
Powered by a reliable engine that outputs 7 kW at 3000 rpm, it meets EURO5 emission standards for eco-friendly operation, low fuel consumption, and stable power.
Designed for precision and easy access, it has a compact chassis with a width of 940 mm and minimum ground clearance of 90 mm.

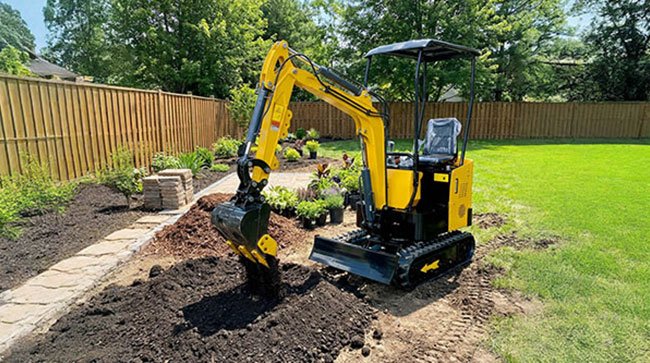

It is perfect for landscaping, urban construction, and agricultural projects.
With a 0.025 m³ bucket capacity and maximum digging depth of 1600 mm, it delivers sufficient reach and power for various light-duty excavation jobs.
Its excellent working range includes a maximum digging radius of 3050 mm and maximum digging height of 2550 mm.

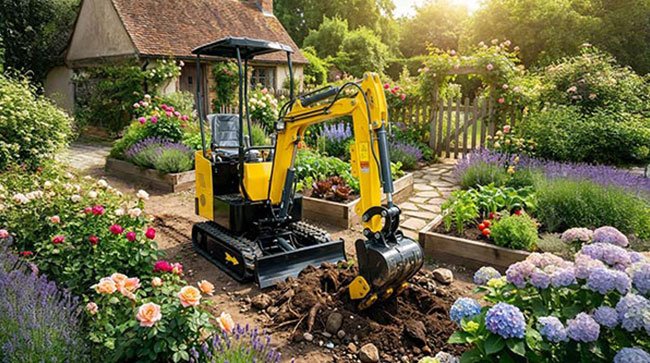

This allows flexible operation in narrow sites such as gardens and residential areas.
Fitted with a heavy-duty 1807237 track system, this mini excavator provides great stability and smooth movement.
It is a reliable choice for professional contractors and the equipment rental business.
Key Advantages
Reliable & Versatile Power
-
Equipped with a KD192FC-1 (7 kW) or Briggs & Stratton (13.5 HP) engine
-
Compliant with EURO5 emission standards for eco-friendly operation
-
High engine speed of 3000 rpm ensures consistent power delivery
Excellent Working Range
-
Maximum digging depth of 1600 mm for deeper trenching tasks
-
Impressive digging radius up to 3050 mm for greater operational reach
-
Maximum digging height of 2550 mm provides superior overhead clearance
Compact & Agile Dimensions
-
Narrow chassis width of 940 mm allows access to confined job sites
-
Overall height of 2200 mm (or 2250 mm with cabin) for easy navigation
-
Minimum ground clearance of 90 mm adapted for varied surface conditions
Efficient Loading & Handling
-
0.025 m³ bucket capacity optimized for precise light-duty tasks
-
Maximum dumping height of 1750 mm enhances loading efficiency into trucks or trailers
-
Durable 1807237 track type provides stable traction and ground support

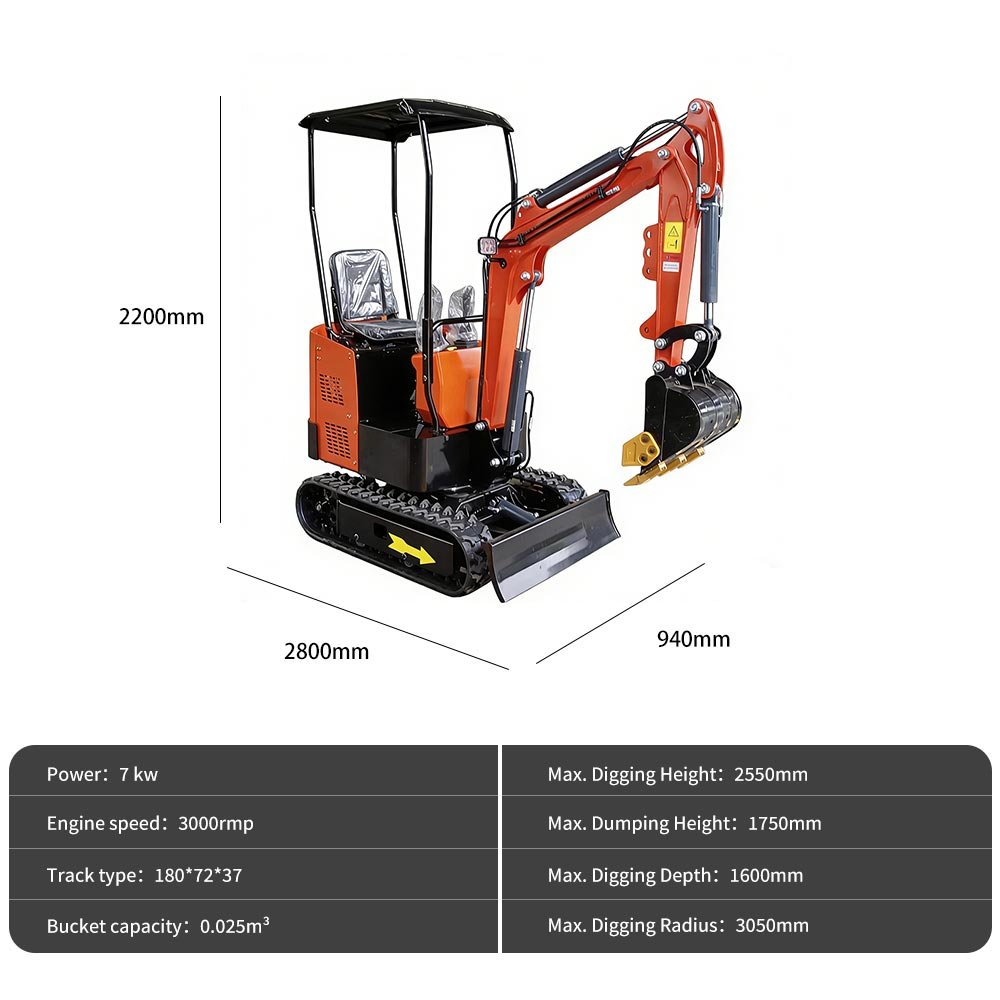

Parameter
| Category | Parameter | Specifications |
| Engine | Engine Model | KD192FC-1 (7KW) / Briggs & Stratton (13.5HP) |
| Emission Standard | EURO5 | |
| Power | 7 kW | |
| Engine Speed | 3000 rpm | |
| Mechanical | Track Type | 180 * 72 * 37 |
| Bucket Capacity | 0.025 m³ | |
| Machine Size | Dimension ($L times W times H$) | 2800 * 940 * 2200 mm |
| With Cabin Height | 2250 mm | |
| Minimum Length | 2400 mm | |
| Minimum Ground Clearance | 90 mm | |
| Working Range | Max. Digging Height | 2550 mm |
| Max. Dumping Height | 1750 mm | |
| Max. Digging Depth | 1600 mm | |
| Max. Digging Radius | 3050 mm |
