Scenari applicativi
Descrizione del prodotto

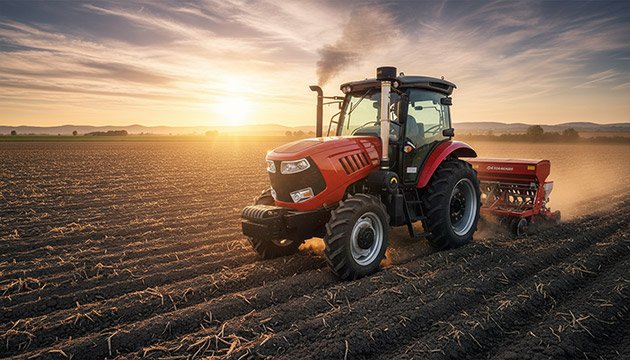

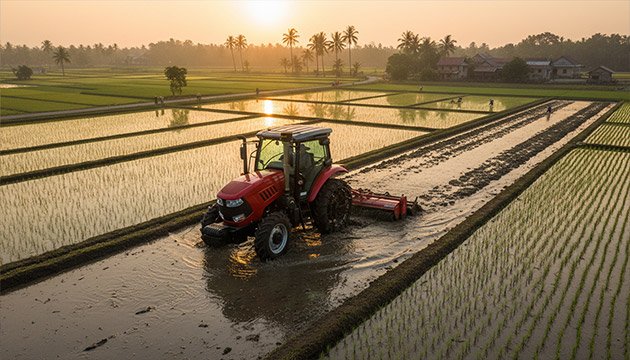

IL SeekMach 1804 Heavy-Duty 4WD Tractor is a flagship agricultural powerhouse built for high-intensity farming and large-scale industrial operations.
With a substantial minimum operating weight of 6320 kg and an extended 2750 mm wheelbase, it delivers exceptional traction and stability when handling heavy-duty implements.
Powered by a high-performance YTO 6-cylinder common rail engine that outputs 180 HP (132.3 kW), the SeekMach 1804 guarantees strong pulling power and dependable performance in harsh soil conditions.
Its advanced TF16F+8R shift sleeve gearbox E upgraded hydraulic system with Category III three-point suspension offer precise control and high lifting capacity, making it the perfect choice for professional large-scale farming.
The flexible chassis is equipped with an adjustable rear wheel track up to 2400 mm and large 18.4-38 tires, enabling efficient operation on various terrains while maintaining excellent ground grip.
In addition, the standard luxury cab and support for advanced features such as GPS unmanned driving and front PTO systems ensure maximum productivity and operator comfort for modern precision agriculture.
Vantaggi principali
Elite Flagship Power & Efficiency
-
180 HP (132.3 kW) 6-cylinder YTO engine provides the highest power output in the series for heavy-duty plowing.
-
High-pressure common rail technology ensures steady power delivery and optimized fuel efficiency.
-
Dual-stage independent control clutch allows for seamless operation of high-demand implements.
Maximum Stability for Heavy Loads
-
Massive 6320 kg operating weight provides ultimate traction and minimizes wheel slip.
-
Flagship 2750 mm wheelbase ensures superior longitudinal stability during high-intensity tasks.
-
Heavy-duty 18.4-38 rear tires offer a massive contact patch for maximum pulling force.
Advanced Implementation & Versatility
-
Category III three-point suspension delivers the high lifting capacity required for professional-grade machinery.
-
TF16F + 8R shift sleeve gearbox offers a wide and precise range of working speeds.
-
Adjustable wheel track (up to 2400 mm rear) allows the tractor to adapt to diverse ridge widths and environments.
Modern Technology & Customization
-
GPS unmanned driving and base station support enables high-precision automated farming.
-
Optional front PTO and suspension allow for front-mounted implements to increase multi-tasking efficiency.
-
Full hydraulic steering and wet disc brakes ensure effortless handling and reliable safety for a machine of this scale.
Parametro
| Categoria | Articolo | Specifica |
| Modello | Nome del modello | 1804 |
| Dimensions & Weight | Overall Dimension (L×W×H) | 5155 × 2500 × 3150 mm |
| Min. Operating Weight | 6320 kg | |
| Wheelbase | 2750 mm | |
| Wheel Track (Front) | 1700, 1750, 1850, 1900, 1950, 2050 mm | |
| Wheel Track (Rear) | 1650–2400 mm | |
| Motore | Model / Brand | YTO YT0180HP 6-Cylinder Stage II |
| Tipo | Vertical, water-cooling, four-stroke, common rail | |
| Cylinder Count | 6 | |
| Potenza nominale | 180 HP / 132.3 kW | |
| Rated Speed | 2200 r/min | |
| Drive Train | Frizione | Single disc, dry, independent control, dual stage |
| Cambio | TF16F + 8R | |
| Gear Shift Type | Shift sleeve | |
| Steering & Brake | Steering Type | Sterzo completamente idraulico |
| Brake Type | Mechanical control, wet, disc | |
| Walking Device | Tire Size (Front/Rear) | 14.9-26 / 18.4-38 |
| Working Device | Suspension Type | Rear, three-point suspension |
| Suspension Category | Category III | |
| Tillage Depth Adjustment | Height adjustment, floating control | |
| Hydraulic Output Device | 2 gruppi | |
| Standard PTO Speed | 8 or 6 keys; 760/850 or 540/1000 rpm | |
| Altro | Protection | Cabin (cab) |
| Optional Equipment | Options | Swing traction, front fender, quick suspension, GPS unmanned driving and base station, front suspension and front power take-off, replaced with Yuchai National II engine, replaced with Xichai National II engine |
