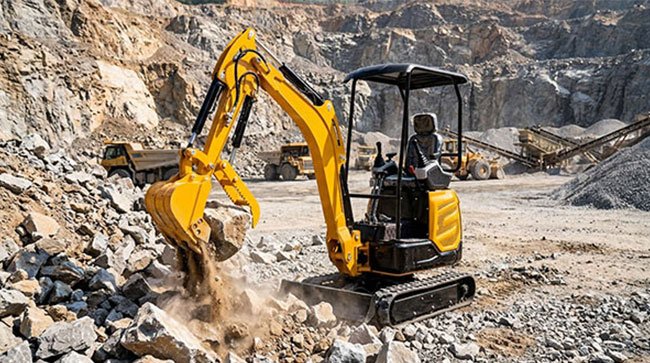

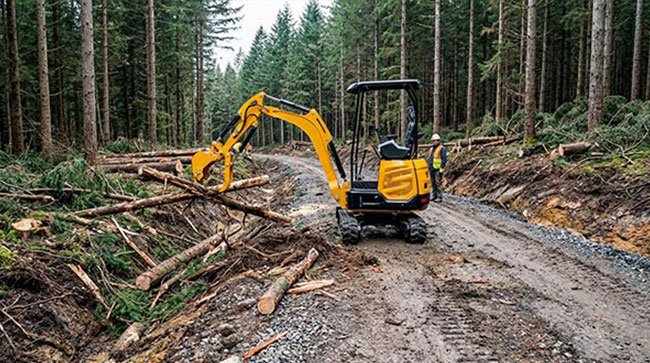

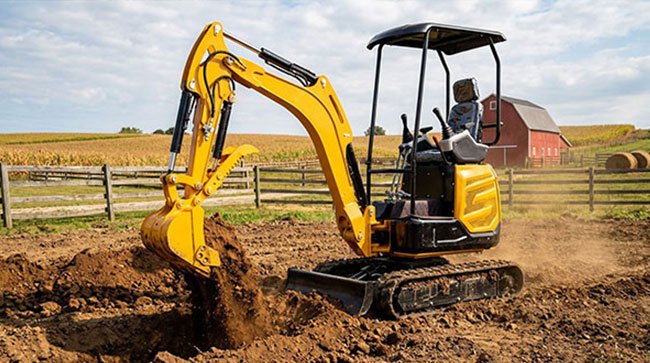

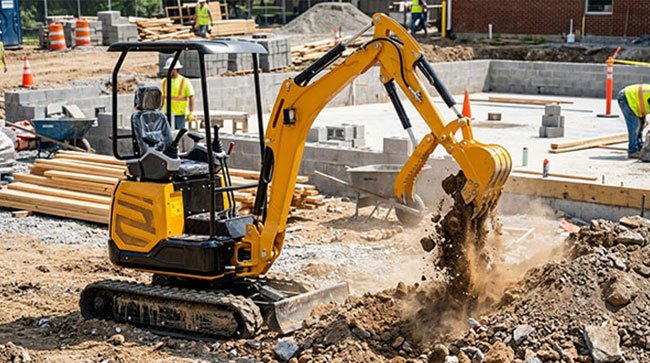

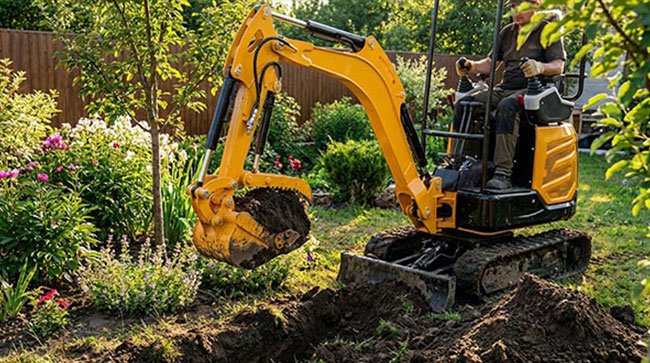

Scénarios d'application
Description du produit

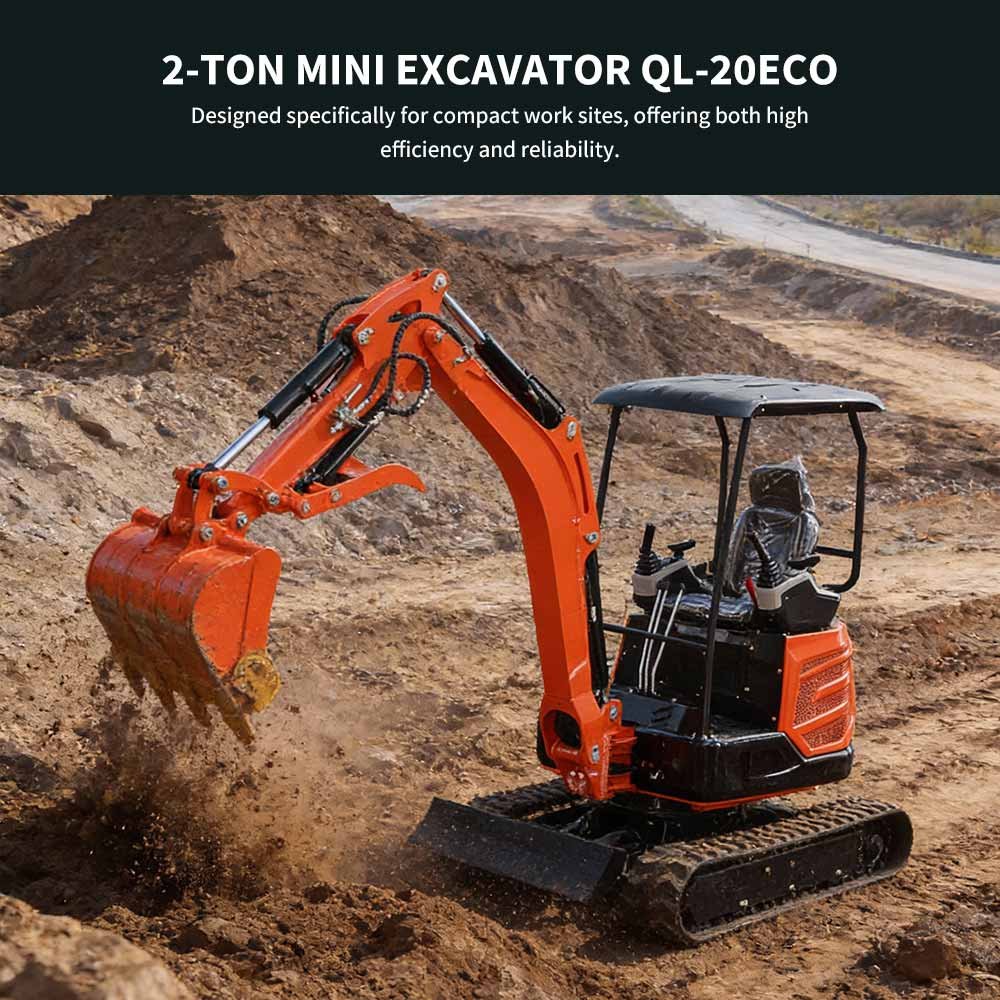

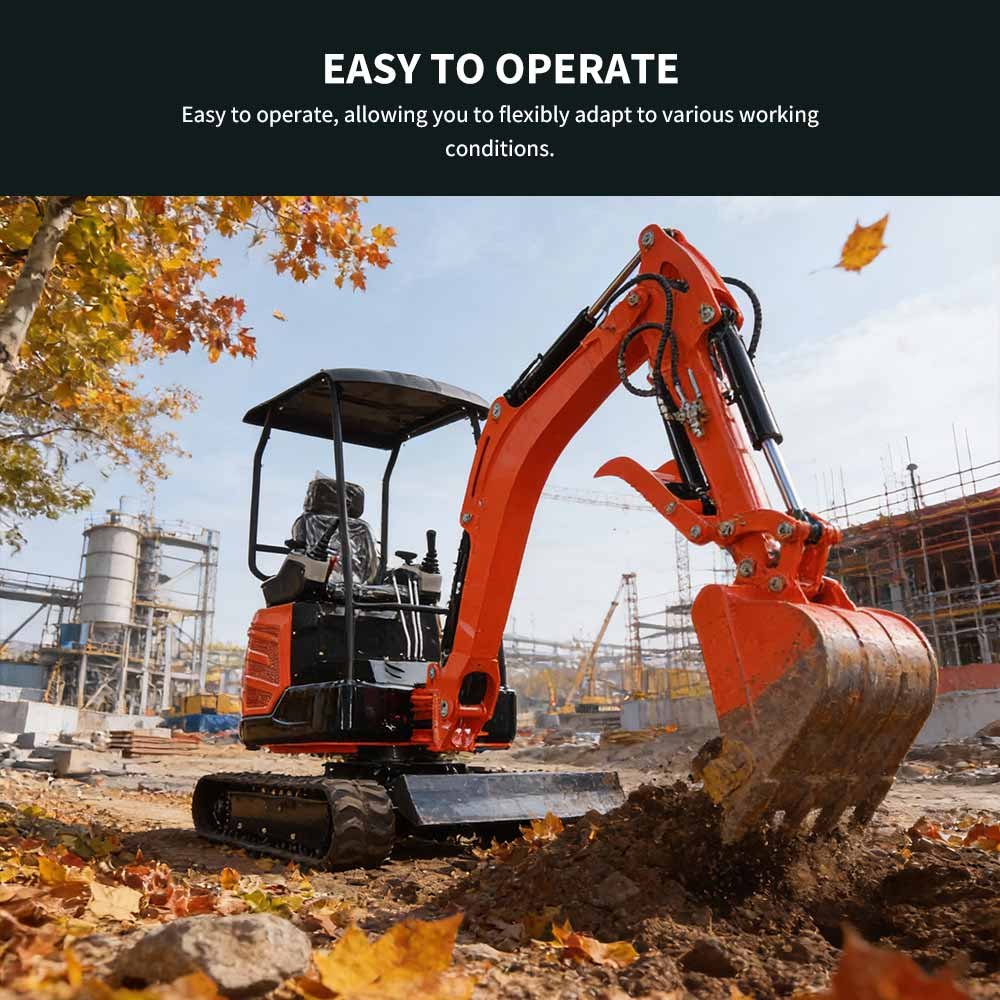

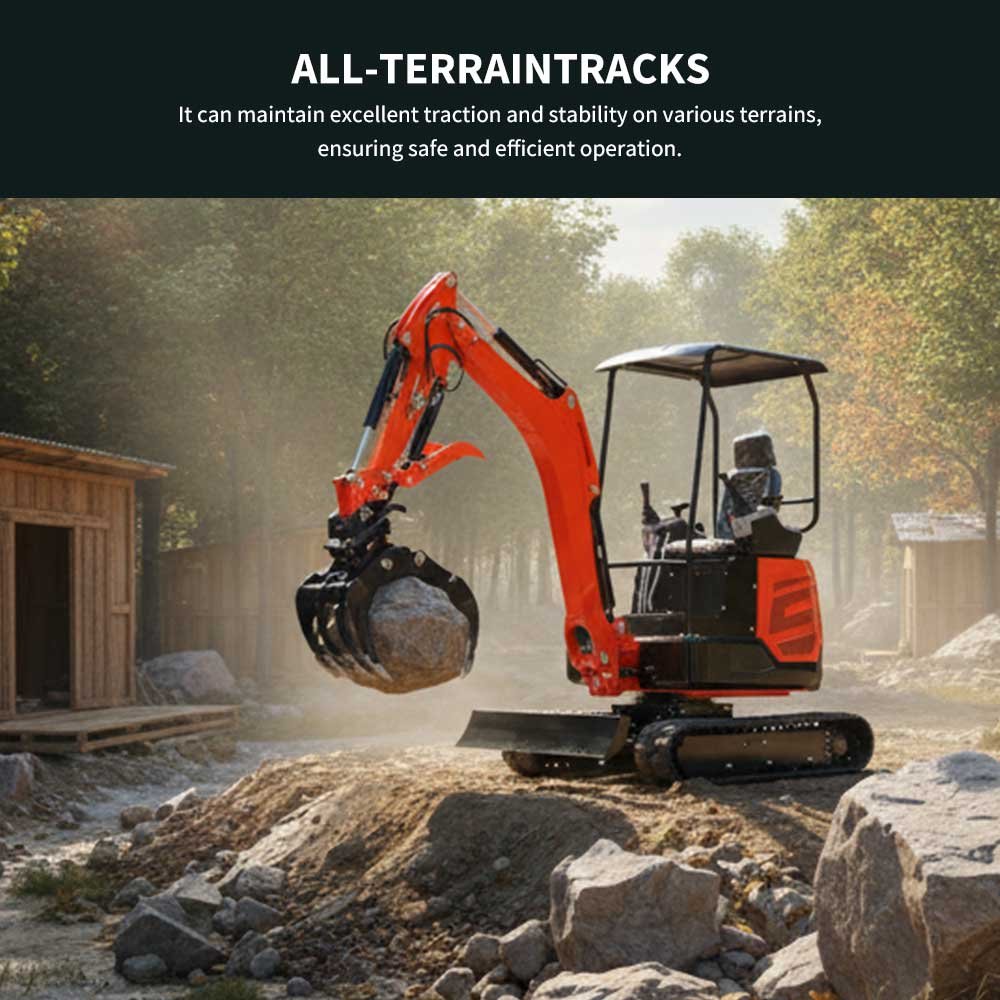

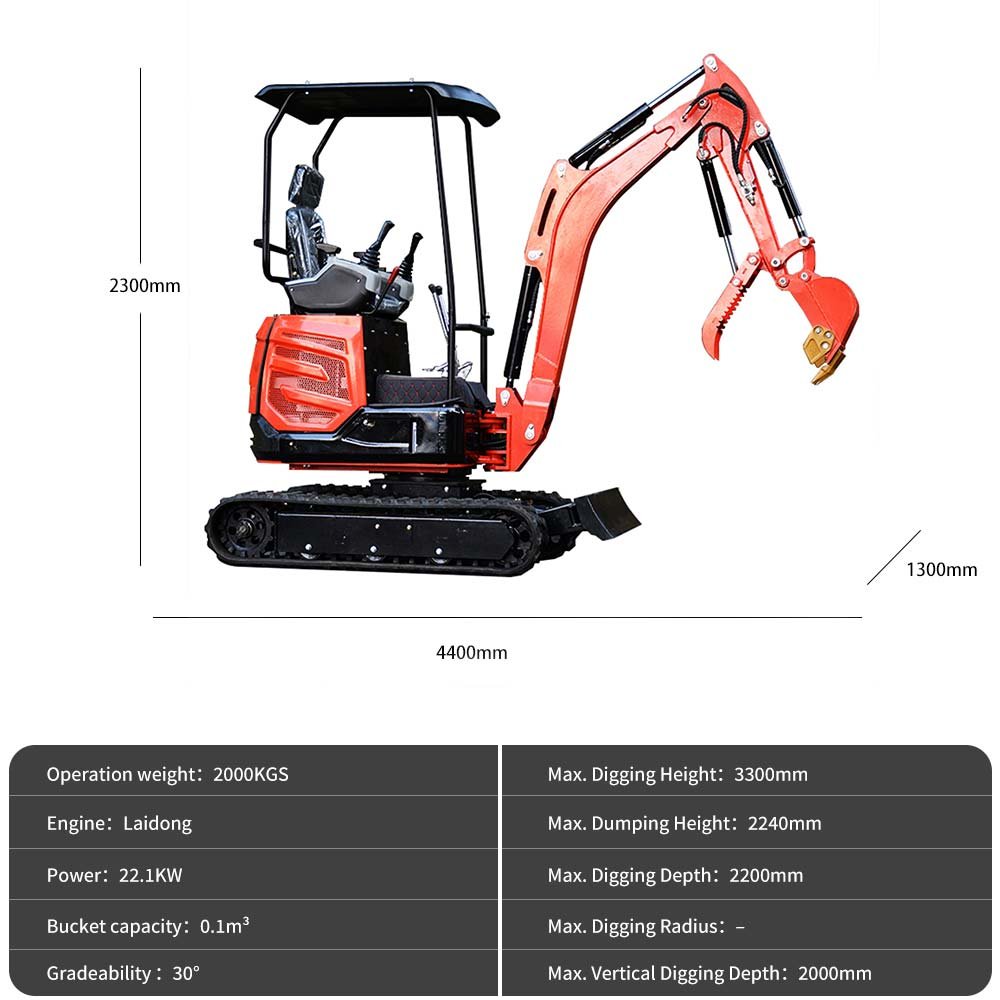

The SeekMach 20 Mini Excavator is a powerful and high-performance construction machine built for more demanding excavation work while keeping a compact size.
With a strong operating weight of 2000 KG, it provides excellent stability and power for heavy-duty landscaping, municipal projects, and site preparation.
Powered by high-performance engine options including the 18.8 KW Laidong 385, the SeekMach 20 offers strong digging force and efficient working cycles.
Its advanced hydraulic system runs at a high pressure of 22 MPa with a maximum flow rate of 35 L/min, ensuring precise control and easy handling of larger attachments.
Despite its enhanced power, the machine keeps a compact overall width of 1100 mm and a short minimum tail swing radius of 840 mm, allowing it to work efficiently in narrow job sites.
With an impressive maximum digging depth of 2100 mm and a dumping height of 2000 mm, the SeekMach 20 delivers the reach and flexibility needed for deep excavation and efficient truck loading.
Principaux avantages
Conception compacte pour les espaces restreints
-
Balanced chassis width (1100 mm) and a short tail swing radius (840 mm).
-
Perfect for urban projects where both power and maneuverability are required.
Performances de creusement efficaces
-
Deep excavation capabilities with a maximum digging depth of 2100 mm.
-
Extended outreach with a maximum digging radius of 3450 mm.
-
High dumping height of 2000 millimètres optimizes loading for larger transport vehicles.
Reliable & High-Performance Power
-
Equipped with premium engine options like the Laidong 385 (18,8 kW) or Kubota series.
-
Fort 18,8 kW rated power ensures steady performance in challenging soil conditions.
Superior Hydraulic Capability
-
À haute pression 22 mpa system with a 35 L/min flow rate for fast, smooth operation.
-
Grand 20 L hydraulic tank capacity for improved cooling and sustained performance.
Enhanced Gradeability & Speed
-
Excellent climbing ability of 45° pour se déplacer sur des terrains escarpés ou accidentés.
-
Variable travel speeds between 2.2-4.3 KM/h for fast job site transitions.
Paramètre
| Catégorie | Paramètre | spécification |
| Basic Parameters | Poids de fonctionnement | 2000 KG |
| Longueur totale | 2300 mm | |
| Hauteur totale | 2200 millimètres | |
| Largeur hors tout | 1100 mm | |
| Zone de travail | Max. Hauteur de creusement | 3100 mm |
| Max. Hauteur de déversement | 2000 millimètres | |
| Max. Profondeur de creusement | 2100 mm | |
| Rayon de creusement maximal | 3450 mm | |
| Min. Tail swing radius | 840 mm | |
| Max. lifting height of earth shovel | 325 mm | |
| Max. digging depth of dozer | 350 mm | |
| Dynamical System | Modèle de moteur | Laidong 385 (18,8 kW) / Kubota D722 (10,2 kW) / Kubota D902 (11,8 kW) |
| Puissance nominale | 18,8 kW | |
| Système hydraulique | Operating Pressure | 22 mpa |
| Max flow rate | 35 L/min | |
| Hydraulic tank capacity | 20 L | |
| Performance | Bucket Capacity (SAE) | 0,03 m³ |
| Climbing ability | 45° | |
| Travel speed | 2.2-4.3 KM/h | |
| Unit swing speed | 8-10 r/min |
