The SeekMach 22 Mini Excavator is a durable and high-performance construction machine built for tough excavation work that demands both power and precision.
With an operating weight of 2200 kg, it provides excellent stability and a strong bucket digging force of 12 kN, perfect for heavy landscaping, utility trenching, and medium‑size construction projects.
Powered by a high‑efficiency engine — available in 22.1 KW Laidong 385 or the dependable Kubota D1703 (18.2 KW) — the SeekMach 22 delivers strong performance and stable operation at a rated speed of 2200 RPM.
Its advanced hydraulic system, equipped with a TAITE main pump and 24/24 L/min flow rate, offers smooth and responsive control for professional earthmoving and site preparation.
The excavator comes with a stable chassis measuring 1300 millimètres in width and a platform tail swing radius of 1150 mm, keeping a compact size while achieving heavy‑duty performance.
With a remarkable maximum digging depth of 2000 mm and a maximum digging radius of 3800 mm, the SeekMach 22 delivers the long reach and 3200 mm digging height needed for efficient loading and deep excavation in various difficult terrains.
Principaux avantages
Compact & Capable Design
-
Balanced chassis width of 1300 millimètres and a platform tail slewing radius of 1150 mm.
-
Designed for high-capacity performance while maintaining accessibility to restricted work zones.
Superior Digging & Loading Performance
-
Powerful bucket digging force of 12 kN and arm digging force of 5 kN.
-
Extended maximum digging radius of 3800 mm et une hauteur de creusement maximale de 3200 mm.
-
Hauteur de déversement maximale de 2200 millimètres significantly optimizes loading for transport vehicles.
High-Performance & Reliable Power
-
Equipped with a high-output 22.1 KW engine (Laidong 385 or Kubota D1703 options).
-
Large displacement of 1.617 L ensures steady torque for heavy-duty applications.

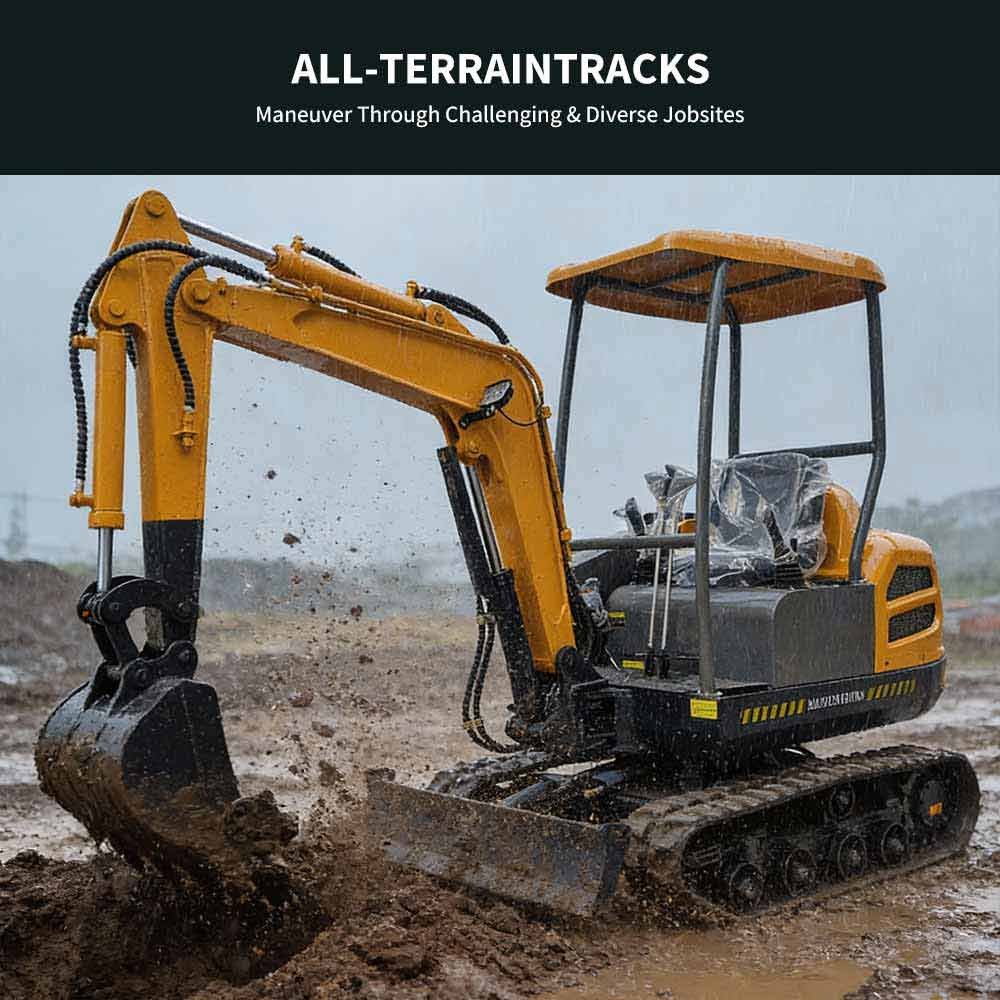

Robust Undercarriage & Stability
-
Heavy-duty total track length of 1890 mm for enhanced ground stability.
-
Large 245 millimètres tracks provide superior traction and low ground pressure on uneven terrain.
Professional-Grade Capacity
-
Grand 30 L fuel and hydraulic oil tank capacities for extended operating hours and reduced downtime.
-
Avancé TAITE hydraulic system with a 24/24 L/min flow rate for smooth, synchronized movements.
Paramètre
| Catégorie | Paramètre | spécification |
| Performance Parameters | Poids opérationnel | 2200 kg |
| Canopy/Cabin | Canopée | |
| Capacité du seau | 0.06 m³ | |
| Bucket Width | 400 mm | |
| Max. digging force | 12 kN | |
| Arm digging force | 5 kN | |
| Moteur | Marque/Modèle | Laidong 385 (18.8 KW) / Kubota D1703 (18.2 KW) / Yanmar 3TNV80F (15.2 KW) |
| Rated power/speed | 22.1 KW / 2200 RPM | |
| Déplacement | 1.617 L | |
| Système hydraulique | Main Pump Brand | TAITE |
| Pump type | GEAR 12/12 | |
| débit | 24/24 L/min | |
| Swing motor | TAITE 400 cc | |
| Traveling motor | 200 cc | |
| Movement & Capacity | Running speed (high/low) | 2.8 km/h |
| Max. traction | 12 kN | |
| Pente | 30° | |
| Capacité du réservoir de carburant | 30 L | |
| Hydraulic oil tank capacity | 30 L | |
| Scope of Work | Max. digging height | 3200 mm |
| Max. dumping height | 2200 millimètres | |
| Max. digging depth | 2000 millimètres | |
| Max. digging radius | 3800 mm | |
| Max. lift height of dozer blade | 210 millimètres | |
| Max. digging depth of dozer blade | 150 mm | |

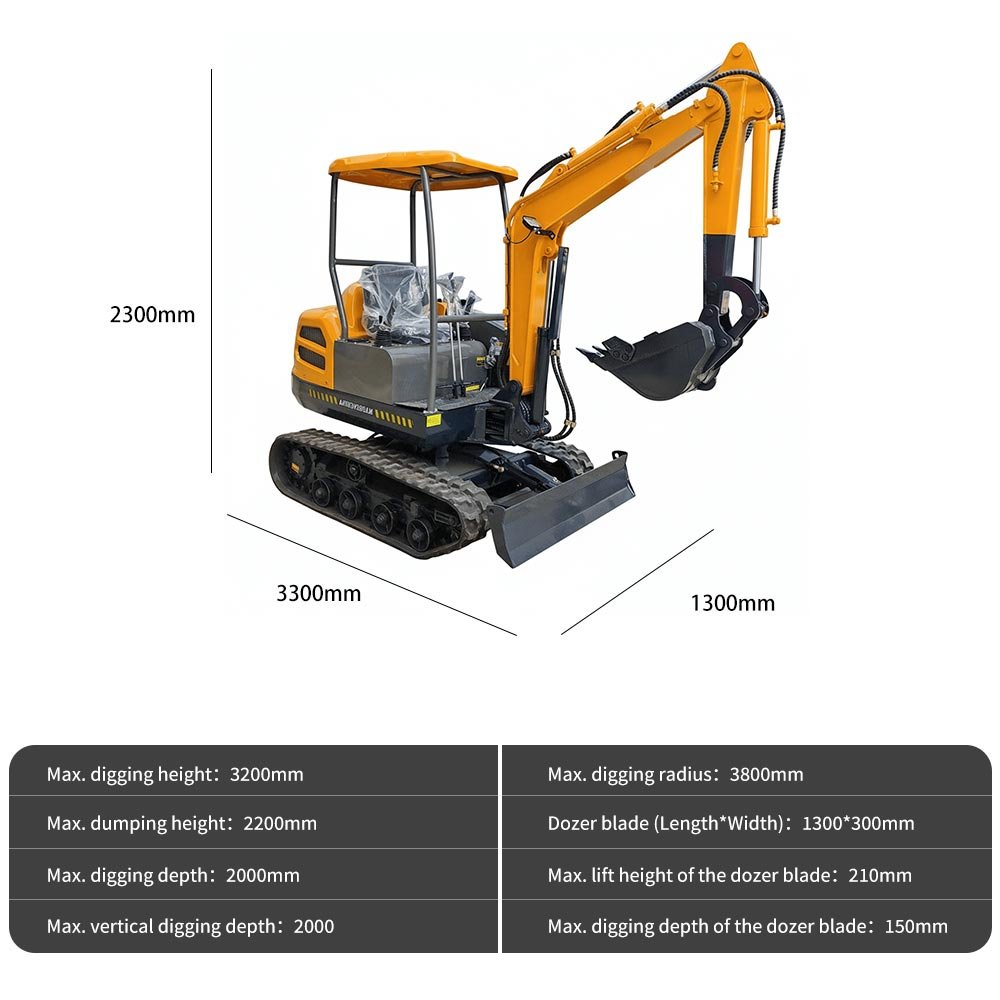

| Dimensions | Overall Dimension (LxWxH) | 3300 * 1300 * 2300 mm |
| Longueur totale de la piste | 1890 mm | |
| Platform tail slewing radius | 1150 mm | |
| Largeur de châssis | 1300 millimètres | |
| Largeur de la piste | 245 millimètres |
